Disabled Refuge Call

Disabled refuges now mandatory

Part M of the Building Regulations insists all new non-domestic buildings with more than one storey with lift access provide ‘refuge’ areas – relatively safe places where people who cannot use fire escapes. The CSL Disabled Refuge system can be used to call for assistance and wait until help arrives. Effective two-way full duplex communication in these areas is essential, firstly to assist rescue teams in determining where assistance is required and secondly to reassure people help is on the way. The CSL disabled refuge system is designed to meet and exceed BS5839 Pt9.

RCO-SS + FR-BB or FL-BB

Disabled refuge outstation. Type B. Flush mounted stainless steel hands free unit with black screen print. Vandal resistant and induction loop coil output. Flush unit has a galvanised steel back box. A call is made by pressing the large momentary push button. This will illuminate the panel mounted ‘call registered’ red led, and initiate a conventional telephone call tone from the panel loudspeaker.

RCO-GB + FR-BB or FL-BB

Disabled refuge outstation. Type B. Flush mounted green hands free unit. Photo luminescent front panel, Braille identification, Vandal resistant, Induction loop, and Tactile text. Flush unit has a galvanised steel back box. A call is made by pressing the large momentary push button. This will illuminate the panel mounted ‘call registered’ red led, and initiate a conventional telephone call tone from the panel loudspeaker.

RCO-GB + SR-BB or SL-BB

Disabled refuge outstation. Type B. Surface mounted green hands free unit. Photo luminescent front panel, Braille identification, Vandal resistant, Induction loop, and Tactile text. Surface unit has a black leatherette (RAL9001) mild steel back box. A call is made by pressing the large momentary push button. This will illuminate the panel mounted ‘call registered’ red led, and initiate a conventional telephone call tone from the panel loudspeaker.

RCO-WR-R or RCO-WR-L

Disabled refuge outstation. Type B. Surface mounted enclosure finished in stainless steel with a black screen print. Weatherproof with hands free communications for clear full duplex audio. A call is made by pressing the large momentary push button. This will illuminate the switch ring (Red) led, and initiate a conventional telephone call tone from the panel loudspeaker.

ORB-R-RS2-F

The Orbital RS2 is a simple two way disabled refuge system. With seperate call indications for each disabled refuge location. The master panel can answer or call out automatically  by lifting the master handset. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.  With flush mounting back box.

ORB-R-RS2-S

The Orbital RS2 is a simple two way disabled refuge system. With seperate call indications for each disabled refuge location. The master panel can answer or call out automatically  by lifting the master handset. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.  With surface mounting back box.

ORB-R-RS2-F-TA

The Orbital RS2-TA is a simple one way disabled refuge and toilet alarm system. The combined master panel has a call indication for the disabled refuge and an alarm indication for disabled toilet. The master panel can answer or call out automatically to the disabled refuge location by lifting the master handset. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstation is radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable. The toilet alarm can be either wired to the disabled refuge oustation or master panel in a non fire rated ‘2’ core cable. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.  With flush mounting back box.

ORB-R-RS2-S-TA

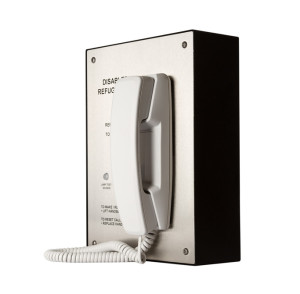

The Orbital RS2-TA is a simple one way disabled refuge and toilet alarm system. The combined master panel has a call indication for the disabled refuge and an alarm indication for disabled toilet. The master panel can answer or call out automatically to the disabled refuge location by lifting the master handset. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstation is radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable. The toilet alarm can be either wired to the disabled refuge oustation or master panel in a non fire rated ‘2’ core cable. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.  With surface mounting back box.

ORB-R-RS4-F or ORB-L-RS4-F

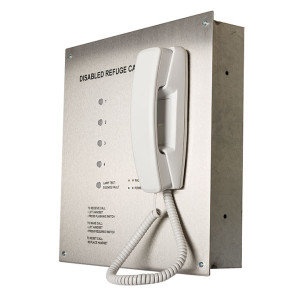

The Orbital RS4 is a four way disabled refuge system. Stainless steel flush enclosure with black screen print. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable or as a loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-R-RS4-S or ORB-L-RS4-S

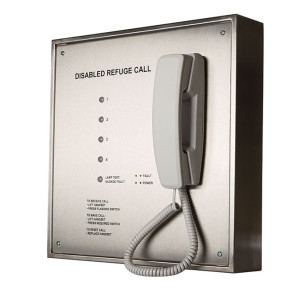

The Orbital RS4 is a four way disabled refuge system. Stainless steel surface enclosure with black screen print. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable or as a loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-R-RS4-F-TA4 or ORB-L-RS4-F-TA4

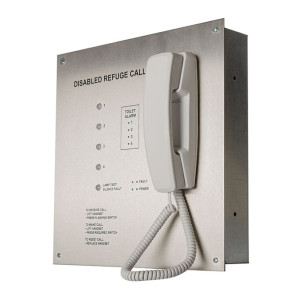

The Orbital RS4-TA4 is a four way combined disabled refuge and disabled toilet alarm system. Stainless steel flush enclosure with black screen print. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable or as a loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. Four individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-R-RS4-S-TA4 or ORB-L-RS4-S-TA4

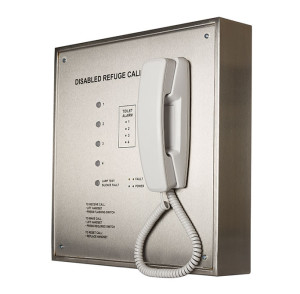

The Orbital RS4-TA4 is a four way combined disabled refuge and disabled toilet alarm system. Stainless steel surface enclosure with black screen print. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable or as a loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. Four individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-R-RS8-F or ORB-L-RS8-F

The Orbital RS8 is an eight way disabled refuge system. Stainless steel flush enclosure with glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable or as a loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-R-RS8-S or ORB-L-RS8-S

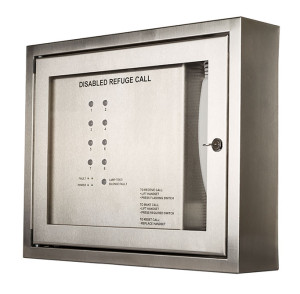

The Orbital RS8 is an eight way disabled refuge system. Stainless steel surface enclosure with glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable or as a loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-R-RS8-F-TA8 or ORB-L-RS8-F-TA8

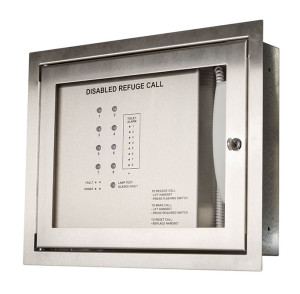

The Orbital RS8-TA8 is an eight way combined disabled refuge and disabled toilet alarm system. Stainless steel flush enclosure with black screen print and glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable or as a loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. Eight individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-R-RS8-S-TA8 or ORB-L-RS8-S-TA8

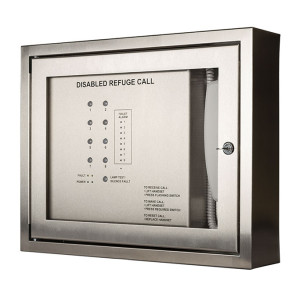

The Orbital RS8-TA8 is an eight way combined disabled refuge and disabled toilet alarm system. Stainless steel surface enclosure with black screen print and glass lockable door. The master panel can answer or call out by pressing the sperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable or as a loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully complant to BS5839 Pt9 and CE 2012 certified. Eight individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-L-RS16-F

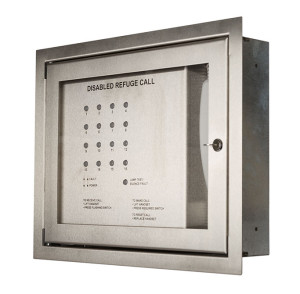

The Orbital RS16 is a sixteen way disabled refuge system. Stainless steel flush enclosure with glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-L-RS16-S

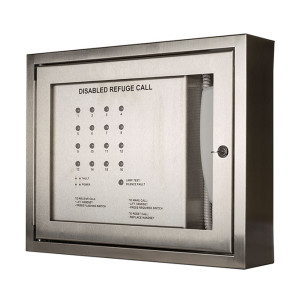

The Orbital RS16 is a sixteen way disabled refuge system. Stainless steel surface enclosure with glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-L-RS16-F-TC16

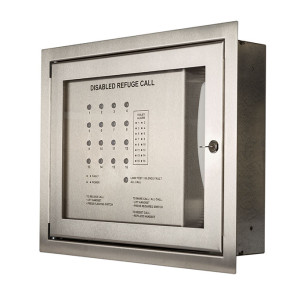

The Orbital RS16-TC16 is a sixteen way combined disabled refuge and disabled toilet alarm system. Stainless steel flush enclosure with black screen print and glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. Sixteen individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-L-RS16-S-TA16

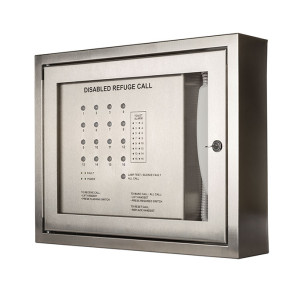

The Orbital RS16-TA16 is a sixteen way combined disabled refuge and disabled toilet alarm system. Stainless steel surface enclosure with black screen print and glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. Sixteen individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-L-RS24-F

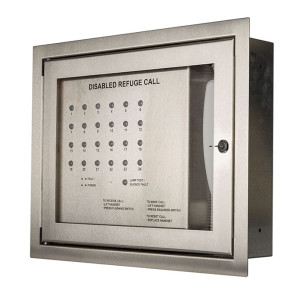

The Orbital RS24 is a twenty four way disabled refuge system. Stainless flush enclosure with glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-L-RS24-S

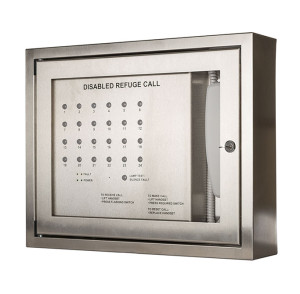

The Orbital RS24 is a twenty four way disabled refuge system. Stainless steel surface enclosure with glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-L-RS32-S

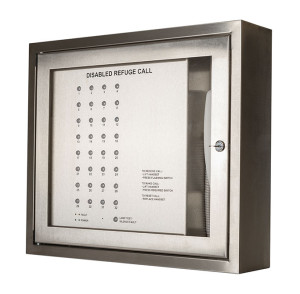

The Orbital RS32 is a thirtytwo way disabled refuge system. Stainless surface enclosure with glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-L-RS32-F-TA16

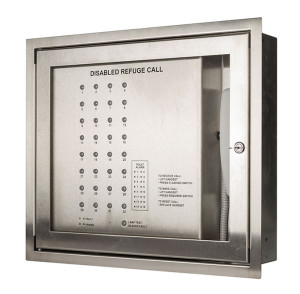

The Orbital RS32-TA16 is a thirty two way combined disabled refuge and sixteen way disabled toilet alarm system. Stainless steel flush enclosure with black screen print and glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. Sixteen individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-L-RS32-S-TA16

The Orbital RS32-TA16 is a thirty two way combined disabled refuge and sixteen way disabled toilet alarm system. Stainless steel surface enclosure with black screen print and glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. Sixteen individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-L-RS32-F-TA32

The Orbital RS32-TA32 is a thirty two way combined disabled refuge and thirty two way disabled toilet alarm system. Stainless steel flush enclosure with black screen print and glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. Thirty two individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-L-RS32-S-TA32

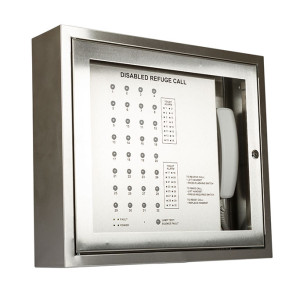

The Orbital RS32-TA32 is a thirty two way combined disabled refuge and thirty two way disabled toilet alarm system. Stainless steel surface enclosure with black screen print and glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The disabled refuge outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. Thirty two individual blue toilet alarm LED indicators are combined onto the master panel. A simple two core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.

ORB-L-RS48-F

The Orbital RS48 is a fourty eight way disabled refuge system. Stainless flush enclosure with glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

ORB-L-RS48-S

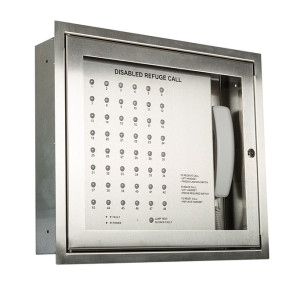

The Orbital RS48 is a fourty eight way disabled refuge system. Stainless surface enclosure with glass lockable door. The master panel can answer or call out by pressing the seperate call switches and indications for each disabled refuge location. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are loop wired ‘4’ core ‘1.5’mm enhanced fire rated cable. A volt free changeover contact is provided for remote call in and fault reporting. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified.

CRT-SSF-R or CRT-SSF-L

Combined disabled refuge and fire telephone unit. Type A and B. Flush enclosure finished in stainless steel, black screen print, and stainless steel disabled refuge outstation combined into the door. Housing a red handset with earing aid t-coil output. By simply lifting the remote handset or pressing the disabled refuge call button a call is made automatically to the central control panel. A clear full duplex audio conversation can take place.

CRT-SSS-R or CRT-SSS-L

Combined disabled refuge and fire telephone unit. Type A and B. Surface enclosure finished in stainless steel, black screen print, and stainless steel disabled refuge outstation combined into the door. Housing a red handset with hearing aid t-coil output. By simply lifting the remote handset or pressing the disabled refuge call button a call is made automatically to the central control panel. A clear full duplex audio conversation can take place.

CRT-GSF-R or CRT-GSF-L

Combined disabled refuge and fire telephone unit. Type A and B. Flush enclosure finished in stainless steel, black screen print, and green disabled refuge outstation combined into the door. Housing a red handset with earing aid t-coil output and a full induction loop output from the disabled refuge unit. By simply lifting the remote handset or pressing the disabled refuge call button a call is made automatically to the central control panel. A clear full duplex audio conversation can take place.

EXC-8

Disabled refuge ‘8’ way radial exchange unit. Surface mounted in a galvanised steel back box and lid. Powered from the disabled refuge ‘4’ core loop wired system to give eight ‘2’ core radial outputs. This product comes with a range of schematics that you can download below: EXC-8 schematics ORB-R-RS16-TA16 schematics ORB-R-RS16 schematics ORB-R-RS32-TA16 schematics ORB-R-RS32-TA32 schematics ORB-R-RS32 schematics ORB-R-RS48 schematics

BTJ

Disabled refuge loop booster unit. Surface mounted in a galvanised steel back box and lid. Increases the disabled refuge loop length and battery support.

TC16-S or TC16-F

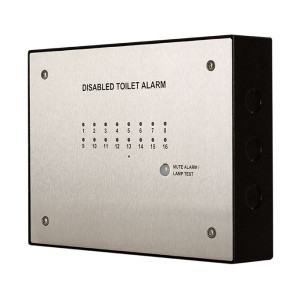

Disabled toilet alarm ’16’ way display. Stainless steel with black screen print. Sixteen blue led indications and mute sounder button. Surface unit has a black leatherette (RAL9001) mild steel back box. Flush unit has a galvanised steel back box.

ORB-RE1

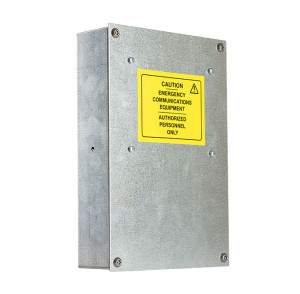

Disabled refuge radial expansion unit. Surface mounted in a galvanised steel back box and lid. Allows cable terminals to the loop based disabled refuge system to a ‘4’ core radial wired outstation.

TAI-1

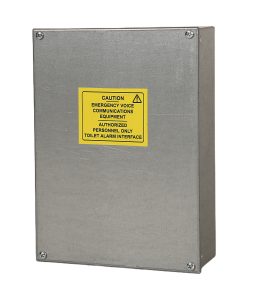

Disabled toilet alarm interface. Surface mounted in a galvanised steel back box and lid. Allows intergration to the disabled refuge system for combined disabled refuge and disabled toilet alarm master panels. One toilet alarm input.

TAI-8 or TAI-4

Disabled toilet alarm interface. Surface mounted in plastic. Allows intergration to the disabled refuge system for combined disabled refuge and disabled toilet alarm master panels. Eight or four toilet alarm inputs.

CRT-GSS-R or CRT-GSS-L

Combined disabled refuge and fire telephone unit. Type A and B. Surface enclosure finished in stainless steel, black screen print, and green disabled refuge outstation combined into the door. Housing a red handset with earing aid t-coil output and a full induction loop output from the disabled refuge unit. By simply lifting the remote handset or pressing the disabled refuge call button a call is made automatically to the central control panel. A clear full duplex audio conversation can take place.
